Build Semantic Layer Views for Zuora Data in APOS Live Data Gateway

APOS Live Data Gateway (LDG) serves as a data connection and data transformation solution, facilitating live data connectivity and broadening data source possibilities for SAP Analytics Cloud and other SAP solutions. When integrated with CData Connect Cloud, users have the capability to construct semantic layer views for real-time access to Zuora data, enabling real-time analytics on Zuora in a manner akin to working with a relational database.

CData Connect Cloud offers a dedicated SQL Server interface for Zuora, enabling data querying directly from Zuora without the need to replicate data to a native database. With pre-optimized data processing capabilities, CData Connect Cloud efficiently directs all supported SQL operations, including filters and JOINs, directly to Zuora. This harnesses server-side processing to swiftly retrieve the requested Zuora data.

Configure Zuora Connectivity for APOS Live Data Gateway

Connectivity to Zuora from APOS Live Data Gateway is made possible through CData Connect Cloud. To work with Zuora data from APOS Live Data Gateway, we start by creating and configuring a Zuora connection.

1. Log into Connect Cloud, click Connections and click Add Connection
2. Select "Zuora" from the Add Connection panel
3. Enter the necessary authentication properties to connect to Zuora.

   Zuora uses the OAuth standard to authenticate users. See the online Help documentation for a full OAuth authentication guide.

   Configuring Tenant property

   In order to create a valid connection with the provider you need to choose one of the Tenant values (USProduction by default) which matches your account configuration. The following is a list with the available options:

   • USProduction: Requests sent to https://rest.zuora.com.
   • USAPISandbox: Requests sent to https://rest.apisandbox.zuora.com"
   • USPerformanceTest: Requests sent to https://rest.pt1.zuora.com"
   • EUProduction: Requests sent to https://rest.eu.zuora.com"
   • EUSandbox: Requests sent to https://rest.sandbox.eu.zuora.com"

   Selecting a Zuora Service

   Two Zuora services are available: Data Query and AQuA API. By default ZuoraService is set to AQuADataExport.

   DataQuery

   The Data Query feature enables you to export data from your Zuora tenant by performing asynchronous, read-only SQL queries. We recommend to use this service for quick lightweight SQL queries.

   Limitations
   • The maximum number of input records per table after filters have been applied: 1,000,000
   • The maximum number of output records: 100,000
   • The maximum number of simultaneous queries submitted for execution per tenant: 5
   • The maximum number of queued queries submitted for execution after reaching the limitation of simultaneous queries per tenant: 10
   • The maximum processing time for each query in hours: 1
   • The maximum size of memory allocated to each query in GB: 2
   • The maximum number of indices when using Index Join, in other words, the maximum number of records being returned by the left table based on the unique value used in the WHERE clause when using Index Join: 20,000

   AQuADataExport

   AQuA API export is designed to export all the records for all the objects ( tables ). AQuA query jobs have the following limitations:

   Limitations
   • If a query in an AQuA job is executed longer than 8 hours, this job will be killed automatically.
   • The killed AQuA job can be retried three times before returned as failed.
4. Click Create & Test
5. Navigate to the Permissions tab in the Add Zuora Connection page and update the User-based permissions.

Add a Personal Access Token

If you are connecting from a service, application, platform, or framework that does not support OAuth authentication, you can create a Personal Access Token (PAT) to use for authentication. Best practices would dictate that you create a separate PAT for each service, to maintain granularity of access.

1. Click on your username at the top right of the Connect Cloud app and click User Profile.
2. On the User Profile page, scroll down to the Personal Access Tokens section and click Create PAT.
3. Give your PAT a name and click Create.
4. The personal access token is only visible at creation, so be sure to copy it and store it securely for future use.

Connecting to Zuora & Creating a Semantic Layer View

After configuring the connection in CData Connect Cloud you are ready to connect to Zuora in the Live Data Gateway Admin tool and build a semantic layer view in the Live Data Gateway Web UI.

Configuring the Connection to Zuora

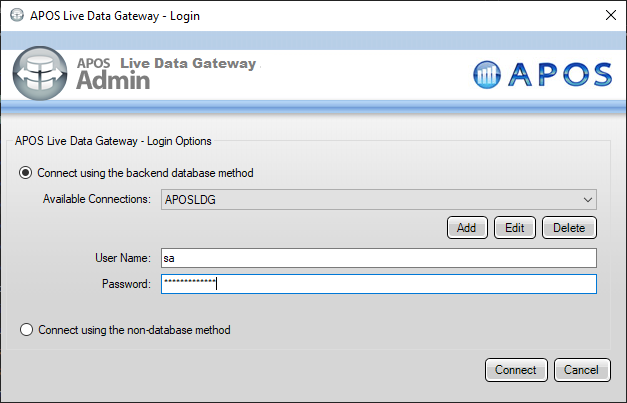

1. Log into your APOS Live Data Gateway Manager
2. If you haven't already, update your APOS LDG license file
   1. Click File -> Configurations
   2. Click on the "..." Menu for the License
   3. Select the license file from the APOS team that includes your CData Connect Cloud license
3. In the APOS Live Data Gateway Manager, click "Add"

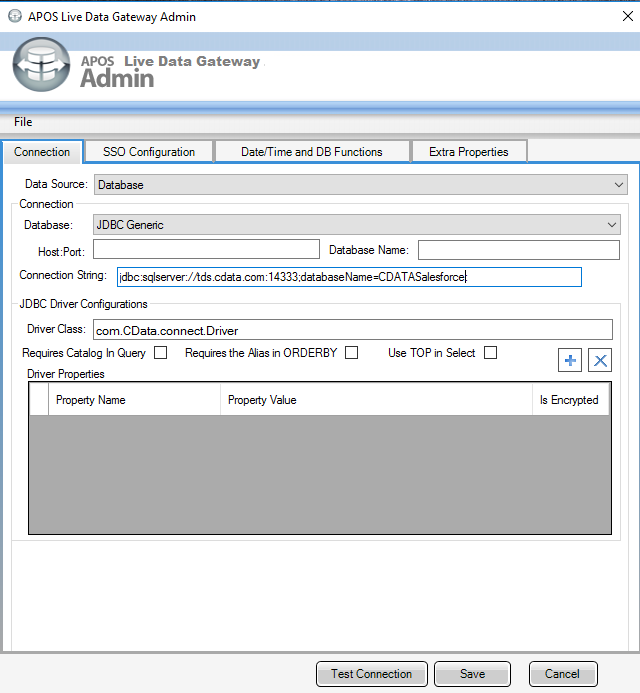

4. In the APOS Live Data Gateway On the Connection tab, configure the connection:
   • Set Data Source to "Database"
   • Set Database to "JDBC Generic"
   • Set Connection String to a connection string similar to the following, using the name of the connection you configured earlier, e.g. jdbc:sqlserver://tds.cdata.com:14333;databaseName=Zuora1
   • Set Driver Class to "com.CData.connect.Driver" (this should be set by default)
5. Click Test Connection
6. Click Save
7. Give your connection a unique prefix (e.g. "zuora")

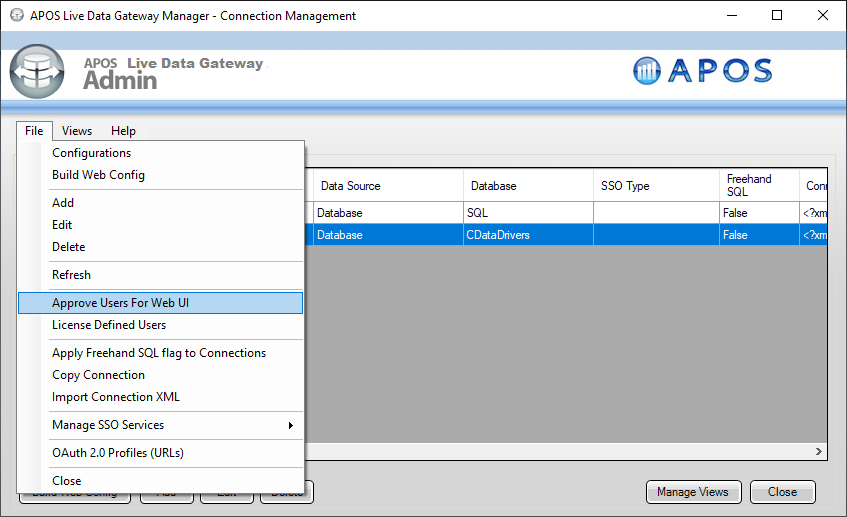

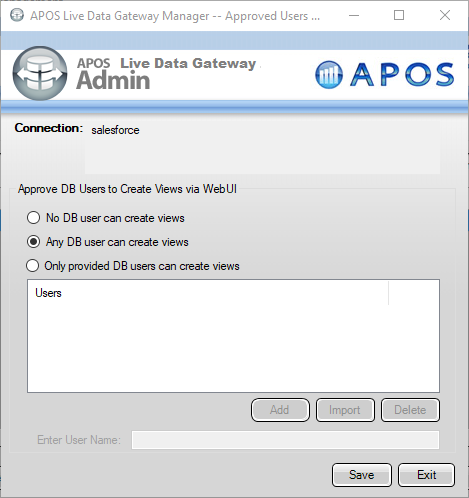

8. Highlight the newly created connection and click File -> "Approve Users For Web UI"
9. Approve the appropriate DB users to create views and click "Save"

At this point, we are ready to build our semantic layer view in the Live Data Gateway Web UI.

Creating a Semantic Layer View

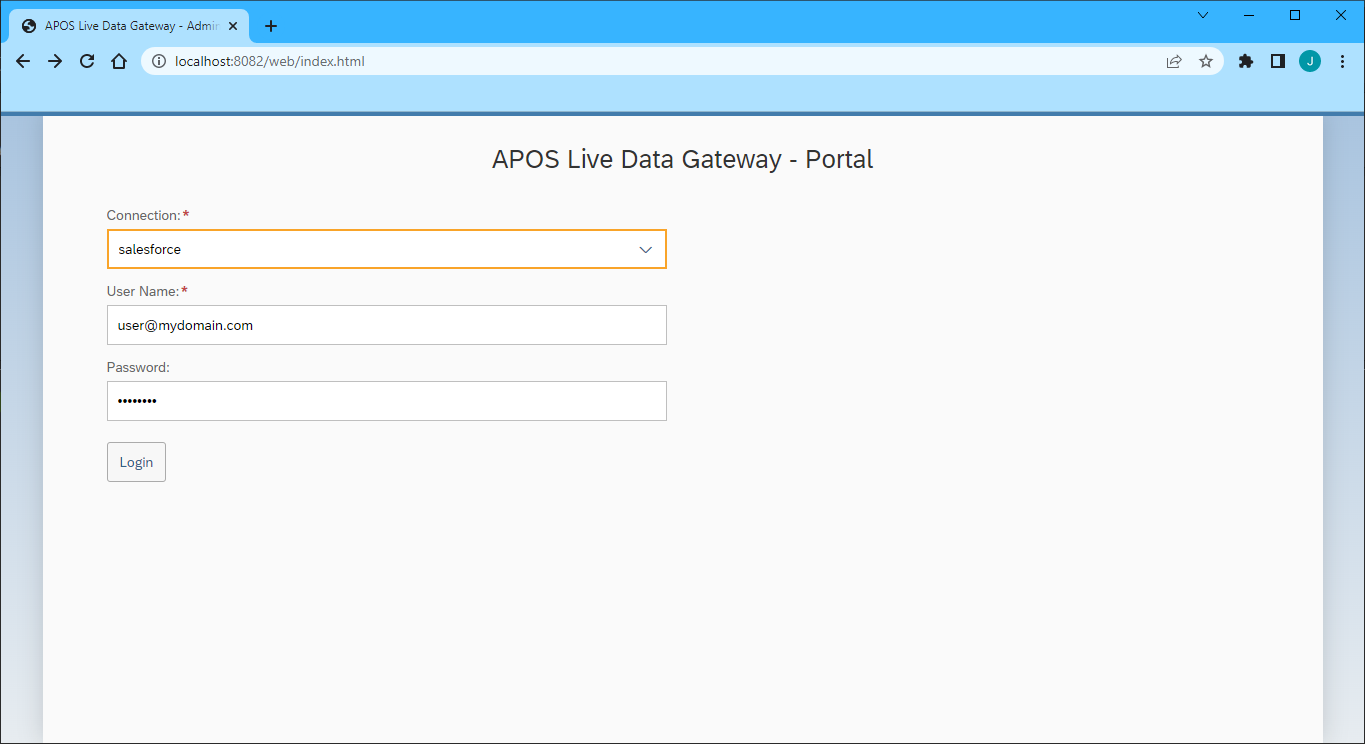

1. In your browser, navigate to the APOS Live Data Gateway Portal
2. Select a Connection (e.g. "zuora")
3. Set User Name and Password to your Connect Cloud username and PAT .
4. Click "Login"

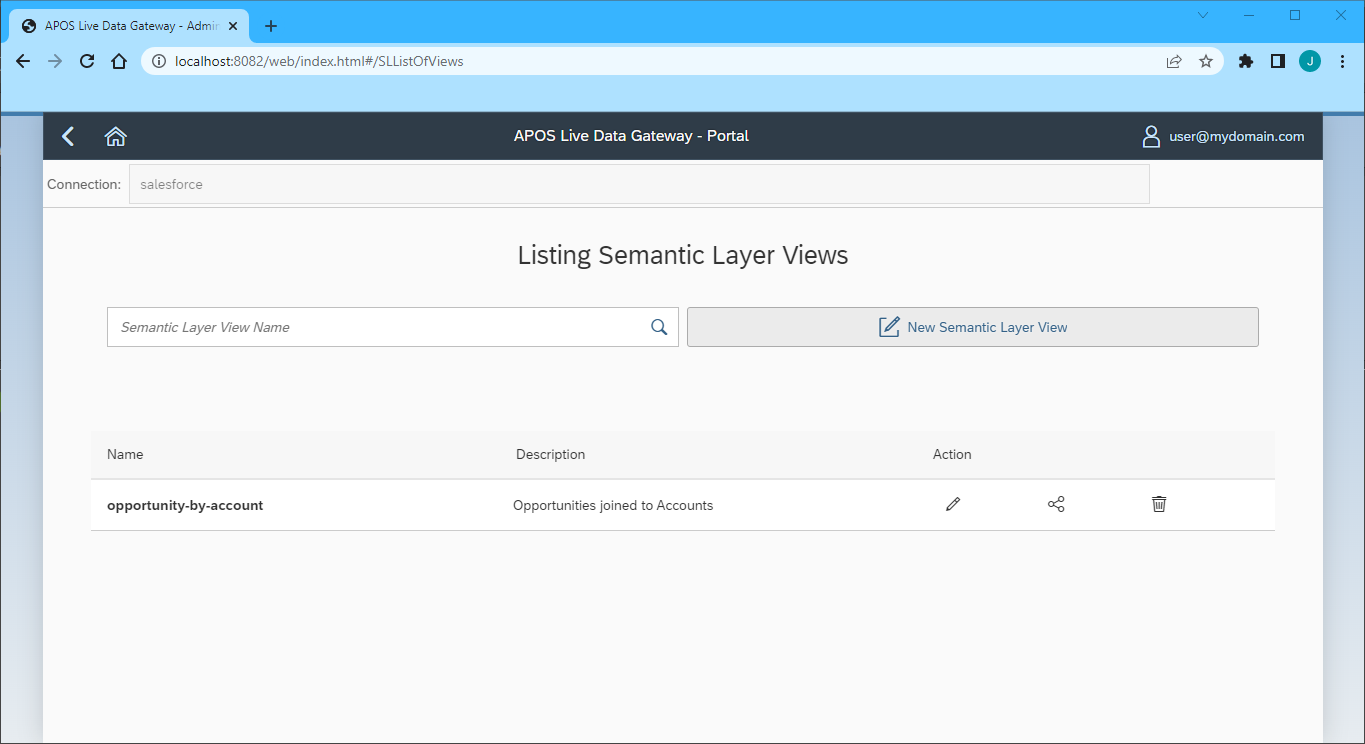

5. Once connected, click "Semantic Layer" to create a new semantic layer view
6. Click "New Semantic Layer View"

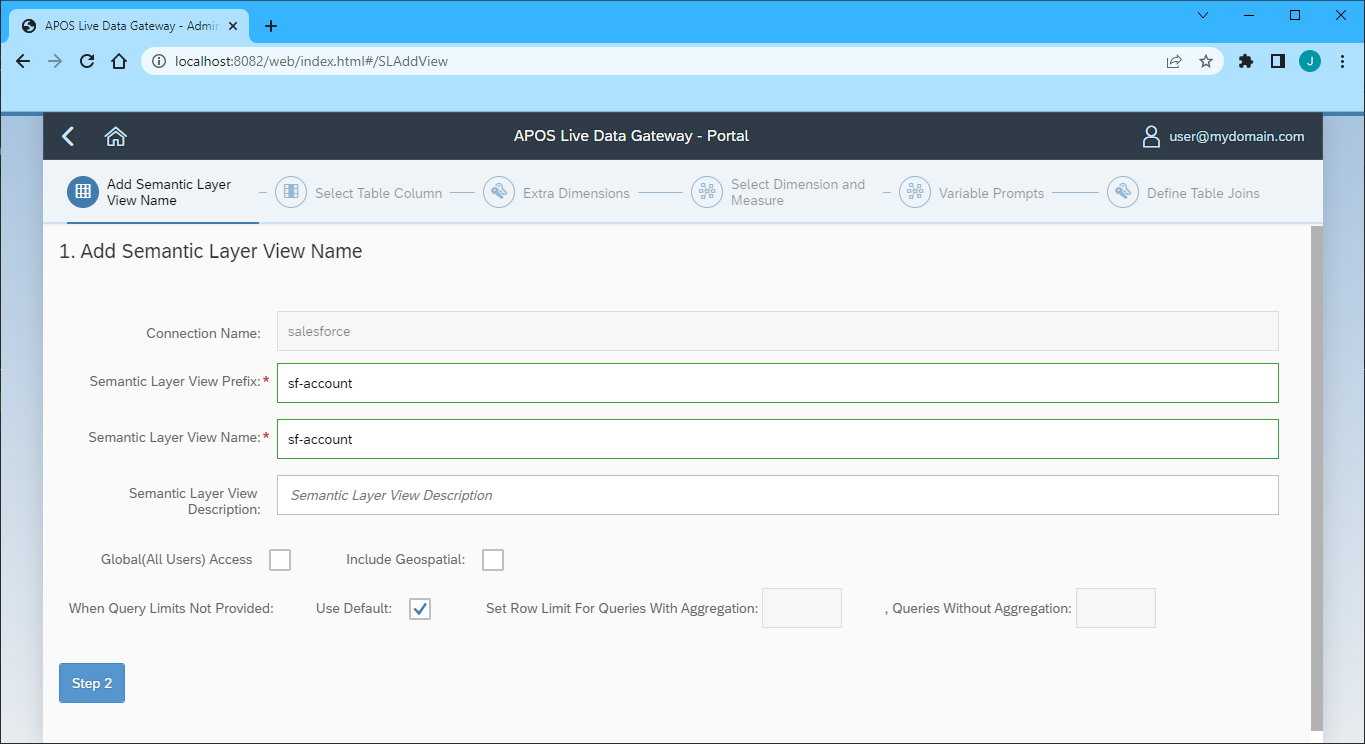

7. Set the Semantic Layer View Prefix and Semantic Layer View Name
8. Click "Step 2"

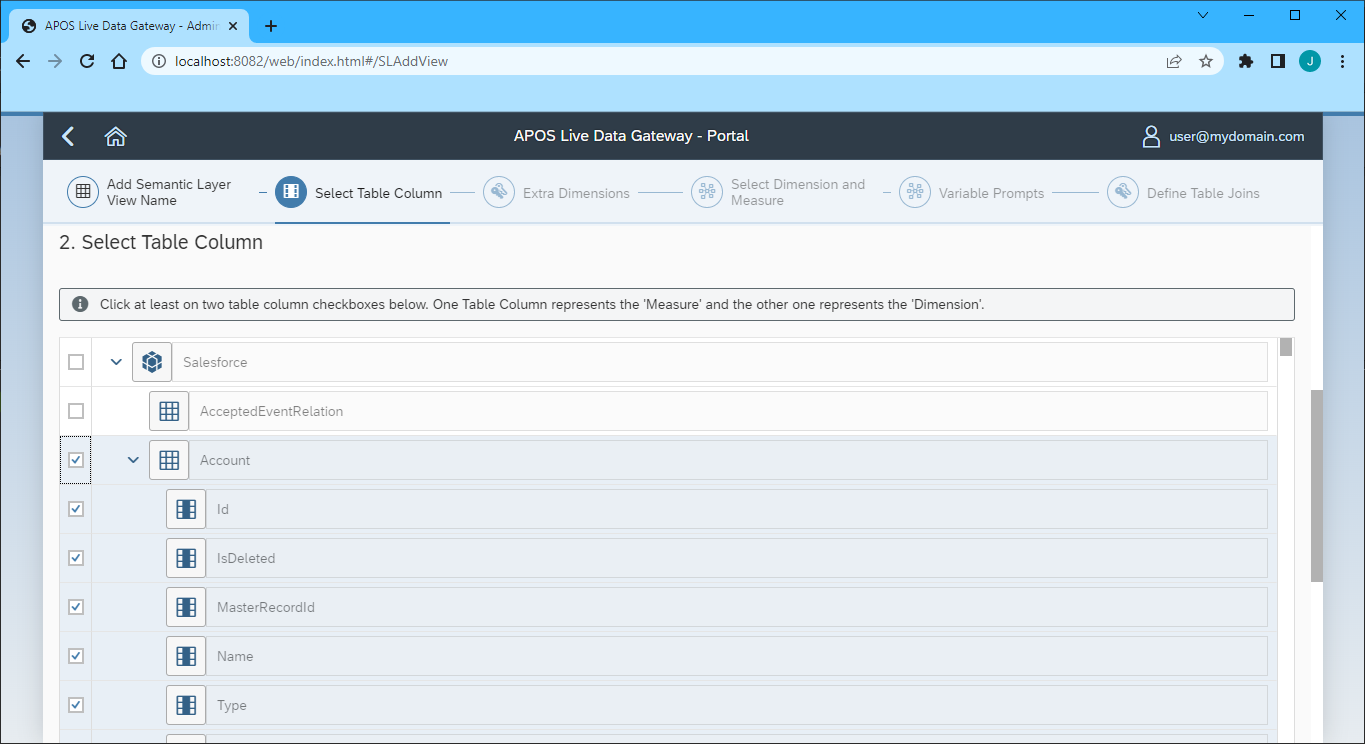

9. Select the table(s) and column(s) you wish to include in your view
10. Click "Step 3"

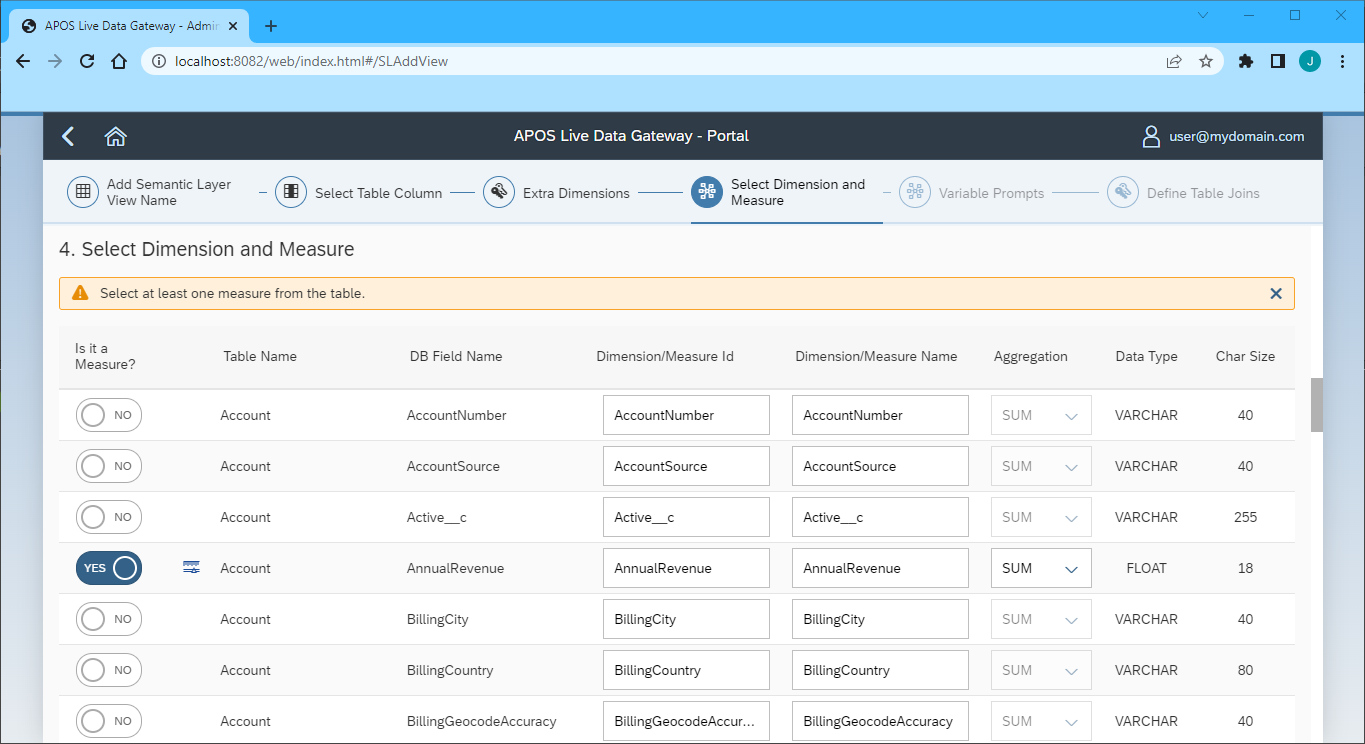

11. Select the Measures from the available table columns
12. Click "Step 5" (we skipped the "Extra Dimensions" step)
13. Add any Variable Prompts
14. Click "Step 6"
15. Define any Table Joins
16. Click "Review"

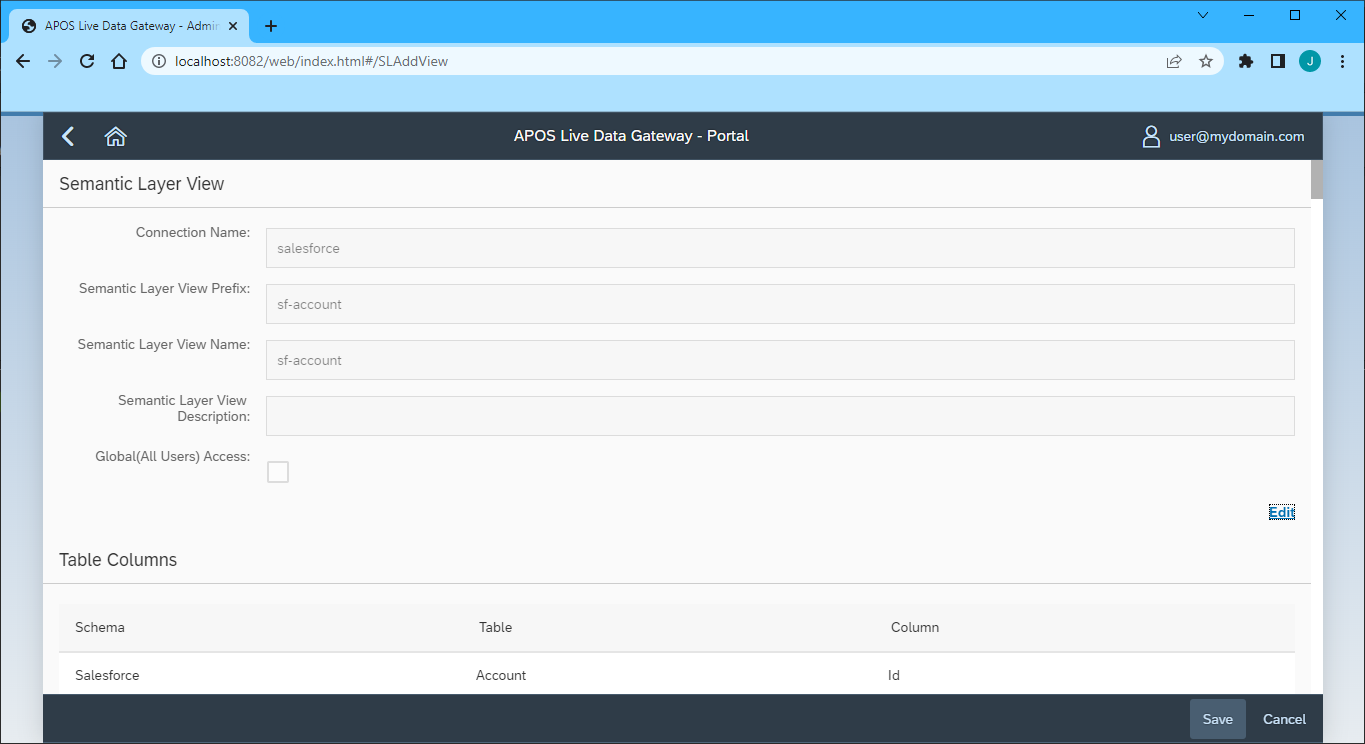

17. Review you semantic layer view and click "Save"

With the Semantic Layer View created, you are ready to access your Zuora data through the APOS Live Data Gateway, enabling real-time data connectivity to Zuora data from SAP Analytics Cloud and other SAP solutions.
