Stream Zoom Data into Apache Kafka Topics

Apache Kafka is an open-source stream processing platform that is primarily used for building real-time data pipelines and event-driven applications. When paired with the CData API Driver for JDBC, Kafka can work with live Zoom data. This article describes how to connect, access and stream Zoom data into Apache Kafka Topics and to start Confluent Control Center to help users secure, manage, and monitor the Zoom data received using Kafka infrastructure in the Confluent Platform.

With built-in optimized data processing, the CData JDBC Driver offers unmatched performance for interacting with live Zoom data. When you issue complex SQL queries to Zoom, the driver pushes supported SQL operations, like filters and aggregations, directly to Zoom and utilizes the embedded SQL engine to process unsupported operations client-side (often SQL functions and JOIN operations). Its built-in dynamic metadata querying allows you to work with and analyze Zoom data using native data types.

Prerequisites

Before connecting the CData JDBC Driver for streaming Zoom data in Apache Kafka Topics, install and configure the following in the client Linux-based system.

1. Confluent Platform for Apache Kafka
2. Confluent Hub CLI Installation
3. Self-Managed Kafka JDBC Source Connector for Confluent Platform

Define a New JDBC Connection to Zoom data

1. Download CData API Driver for JDBC on a Linux-based system
2. Follow the given instructions to create a new directory extract all the driver contents into it:
   1. Create a new directory named Zoom mkdir API
   2. Move the downloaded driver file (.zip) into this new directory mv APIJDBCDriver.zip API/
   3. Unzip the CData APIJDBCDriver contents into this new directory unzip APIJDBCDriver.zip
3. Open the Zoom directory and navigate to the lib folder ls cd lib/
4. Copy the contents of the lib folder of Zoom into the lib folder of Kafka Connect JDBC. Check the Kafka Connect JDBC folder contents to confirm that the cdata.jdbc.api.jar file is successfully copied into the lib folder cp * ../../confluent-7.5.0/share/confluent-hub-components/confluentinc-kafka-connect-jdbc/lib/ cd ../../confluent-7.5.0/share/confluent-hub-components/confluentinc-kafka-connect-jdbc/lib/
5. Install the CData Zoom JDBC driver license using the given command, followed by your Name and Email ID java -jar cdata.jdbc.api.jar -l
6. Enter the product key or "TRIAL" (In the scenarios of license expiry, please contact our CData Support team)
7. Start the Confluent local services using the command: confluent local services start

   This starts all the Confluent Services like Zookeeper, Kafka, Schema Registry, Kafka REST, Kafka CONNECT, ksqlDB and Control Center. You are now ready to use the CData JDBC driver for Zoom to stream messages using Kafka Connect Driver into Kafka Topics on ksqlDB.

8. Create the Kafka topics manually using a POST HTTP API Request: curl --location 'server_address:8083/connectors' --header 'Content-Type: application/json' --data '{ "name": "jdbc_source_cdata_api_01", "config": { "connector.class": "io.confluent.connect.jdbc.JdbcSourceConnector", "connection.url": "jdbc:api:Profile=C:\profiles\Zoom.apip;Authscheme=OAuth;OAuthClientId=your_client_id;OAuthClientSecret=your_client_secret;CallbackUrl=your_callback_url;; InitiateOAuth=GETANDREFRESH", "topic.prefix": "api-01-", "mode": "bulk" } }'

   Let us understand the fields used in the HTTP POST body (shown above):

   • connector.class: Specifies the Java class of the Kafka Connect connector to be used.
   • connection.url: The JDBC connection URL to connect with Zoom data.

     Built-in Connection String Designer

     For assistance in constructing the JDBC URL, use the connection string designer built into the Zoom JDBC Driver. Either double-click the JAR file or execute the jar file from the command-line.

     java -jar cdata.jdbc.api.jar

     Fill in the connection properties and copy the connection string to the clipboard.

     Start by setting the Profile connection property to the location of the Zoom Profile on disk (e.g. C:\profiles\Zoom.apip). Next, set the ProfileSettings connection property to the connection string for Zoom (see below).

     Zoom API Profile Settings

     To authenticate to Zoom, you can use the OAuth standard to connect to your own data or to allow other users to connect to their data.

     First you will need to create an OAuth app. To do so, navigate to https://marketplace.zoom.us/develop/create and click Create under the OAuth section. Select whether or not the app will be for individual users or for the entire account, and uncheck the box to publish the app. Give the app a name and click Create. You will then be given your Client Secret and Client ID

     After setting the following connection properties, you are ready to connect:

     • AuthScheme: Set this to OAuth.
     • InitiateOAuth: Set this to GETANDREFRESH. You can use InitiateOAuth to manage the process to obtain the OAuthAccessToken.
     • OAuthClientID: Set this to the OAuth Client ID that is specified in your app settings.
     • OAuthClientSecret: Set this to the OAuth Client Secret that is specified in your app settings.
     • CallbackURL: Set this to the Redirect URI you specified in your app settings.

   • topic.prefix: A prefix that will be added to the Kafka topics created by the connector. It's set to "api-01-".
   • mode: Specifies the mode in which the connector operates. In this case, it's set to "bulk", which suggests that the connector is configured to perform bulk data transfer.

   This request adds all the tables/contents from Zoom as Kafka Topics.

   Note: The IP Address (server) to POST the request (shown above) is the Linux Network IP Address.

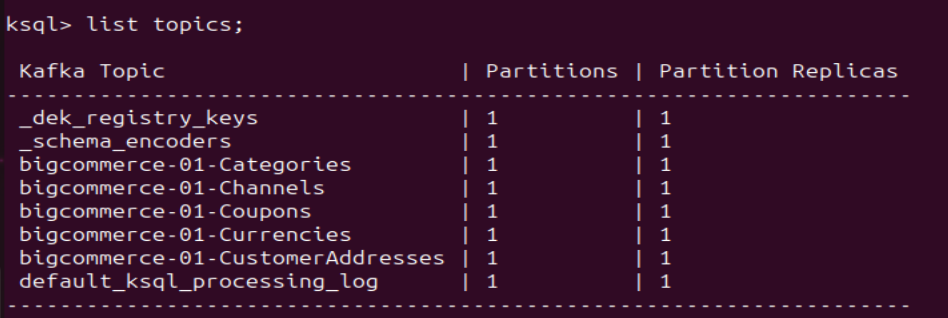

9. Run ksqlDB and list the topics. Use the commands: ksql list topics;
10. To view the data inside the topics, type the SQL Statement: PRINT topic FROM BEGINNING;

Connecting with the Confluent Control Center

To access the Confluent Control Center user interface, ensure to run the "confluent local services" as described in the above section and type http://<server address>:9021/clusters/ on your local browser.

Get Started Today

Download a free, 30-day trial of the CData API Driver for JDBC and start streaming Zoom data into Apache Kafka. Reach out to our Support Team if you have any questions.
