Connect to Monday.com Data from Crystal Reports

Crystal Reports is a business intelligence application by SAP designed to help you analyze your data with well-formatted, pixel-perfect, and multi-page reports. When paired with CData Connect Cloud, Crystal Reports gets access to live Monday.com data. This article demonstrates how to connect to Monday.com using Connect Cloud and report on Monday.com data in Crystal Reports.

CData Connect Cloud provides a pure SQL Server interface for Monday.com, allowing you to query data from Monday.com without replicating the data to a natively supported database. Using optimized data processing out of the box, CData Connect Cloud pushes all supported SQL operations (filters, JOINs, etc.) directly to Monday.com, leveraging server-side processing to return the requested Monday.com data quickly.

Configure Monday.com Connectivity for Crystal Reports

Connectivity to Monday.com from Crystal Reports is made possible through CData Connect Cloud. To work with Monday.com data from Crystal Reports, we start by creating and configuring a Monday.com connection.

1. Log into Connect Cloud, click Connections and click Add Connection
2. Select "Monday.com" from the Add Connection panel
3. Enter the necessary authentication properties to connect to Monday.com.

   You can connect to Monday.com using either API Token authentication or OAuth authentication.

   Connecting with an API Token

   Connect to Monday.com by specifying the APIToken. Set the AuthScheme to Token and obtain the APIToken as follows:

   • API tokens for admin users
     1. Log in to your Monday.com account and click on your avatar in the bottom left corner.
     2. Select Admin.
     3. Select "API" on the left side of the Admin page.
     4. Click the "Copy" button to copy the user's API token.
   • API tokens for non-admin users
     1. Click on your profile picture in the bottom left of your screen.
     2. Select "Developers"
     3. Click "Developer" and then "My Access Tokens" at the top.
     4. Select "Show" next to the API token, where you'll be able to copy it.

   Connecting with OAuth Authentication

   Alternatively, you can establish a connection using OAuth (refer to the OAuth section of the Help documentation).

4. Click Create & Test
5. Navigate to the Permissions tab in the Add Monday.com Connection page and update the User-based permissions.

Add a Personal Access Token

If you are connecting from a service, application, platform, or framework that does not support OAuth authentication, you can create a Personal Access Token (PAT) to use for authentication. Best practices would dictate that you create a separate PAT for each service, to maintain granularity of access.

1. Click on your username at the top right of the Connect Cloud app and click User Profile.
2. On the User Profile page, scroll down to the Personal Access Tokens section and click Create PAT.
3. Give your PAT a name and click Create.
4. The personal access token is only visible at creation, so be sure to copy it and store it securely for future use.

Connect to Monday.com from Crystal Reports using Connect Cloud

To establish a connection from Crystal Reports to CData Connect Cloud, you will need to download the JDBC Driver.

1. Open the Client Tools page of CData Connect Cloud.
2. In the Dev Tools section, click JDBC.
3. Download and run the setup file.
4. When the installation is complete, locate the JDBC Connect JAR file in the JDBC driver's installation directory, for example, C:\Program Files\CData\JDBC Driver for CData Connect\lib.
5. Copy the JDBC Connect JAR file (cdata.jdbc.connect.jar).

After copying the JDBC CData Connect JAR file, you will need to paste it into the Crystal Reports installation location and configure the connection to Connect Cloud.

1. Find the installation directory for Crystal Reports, for example, C:\Program Files (x86)\SAP BusinessObjects\SAP BusinessObjects Enterprise XI 4.0\java\lib
2. Paste the JDBC Connect JAR file into the Crystal Reports installation directory.

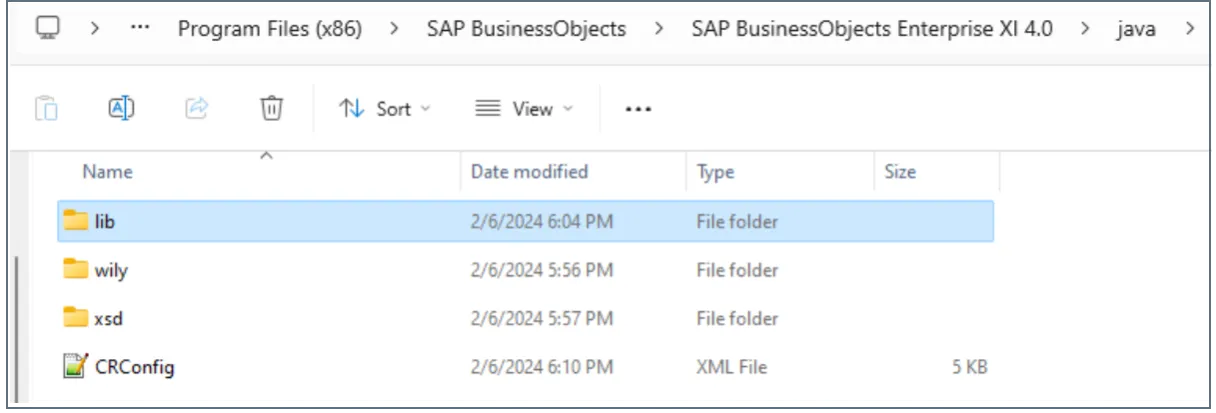

3. Go to the parent java folder. For example, C:\Program Files (x86)\SAP BusinessObjects\SAP BusinessObjects Enterprise XI 4.0\java This folder should contain a CRConfig file.

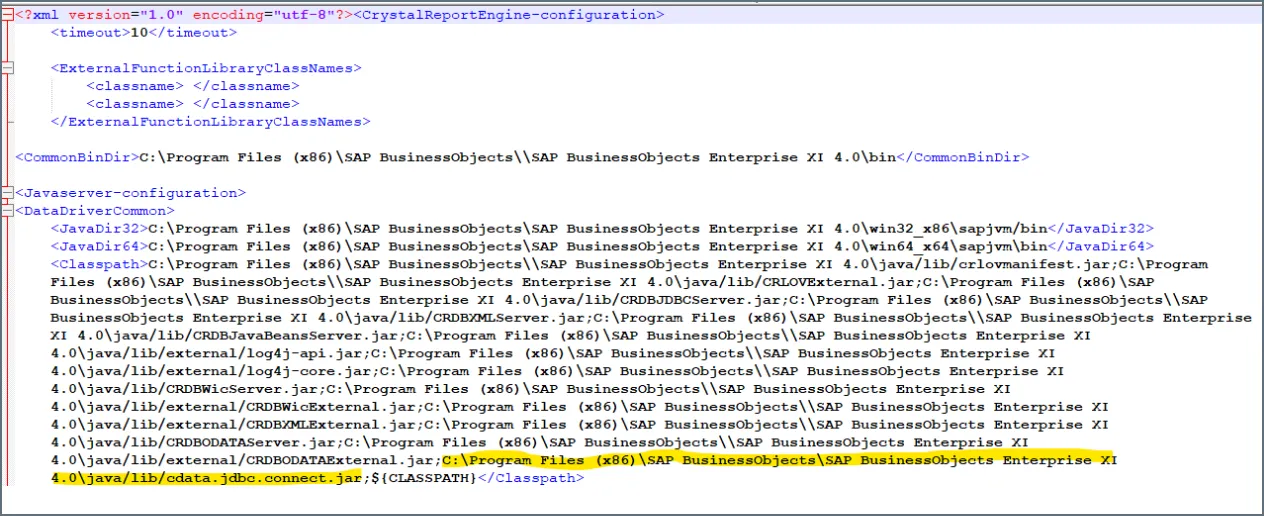

4. Open CRConfig in a text editor.
5. Add the path to the JDBC CData Connect JAR file in the of the CRConfig file, for example, C:\Program Files (x86)\SAP BusinessObjects\SAP BusinessObjects Enterprise XI 4.0\java\lib
6. Log into Crystal Reports and start a blank report.

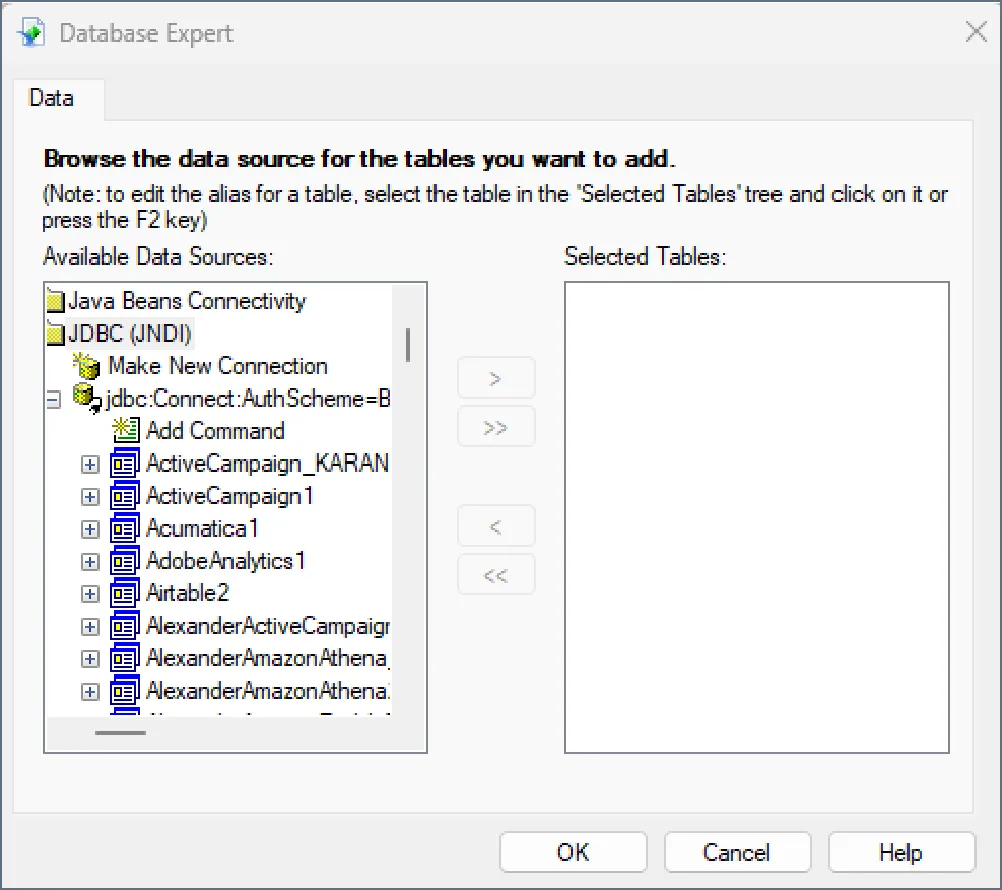

7. In the Database Expert dialog, click Create New Connection.
8. Select the JDBC data source and the tables you want to add. Click OK.

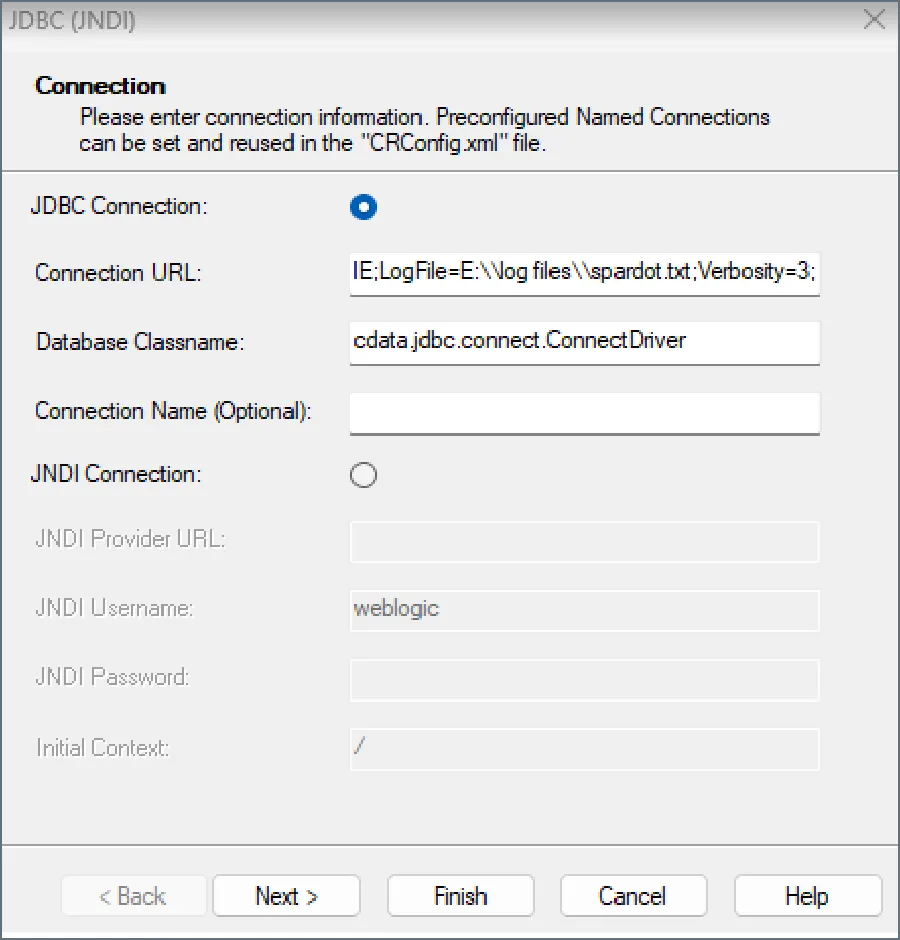

9. In the Connection dialog, enter the Connection URL (e.g. jdbc:connect:AuthScheme=OAuth;) and Database Classname (e.g. cdata.jdbc.connect.ConnectDriver).
10. Click Finish. The Database Expert dialog displays all available connections.

You can now create reports with the connected data.
