Connect to and Visualize Live EnterpriseDB Data in Tableau Prep

Tableau is a visual analytics platform transforming the way businesses use data to solve problems. When paired with the CData Tableau Connector for EnterpriseDB, you can easily get access to live EnterpriseDB data within Tableau Prep. This article shows how to connect to EnterpriseDB in Tableau Prep and build a simple chart.

The CData Tableau Connectors enable high-speed access to live EnterpriseDB data in Tableau. Once you install the connector, you simply authenticate with EnterpriseDB and you can immediately start building responsive, dynamic visualizations and dashboards. By surfacing EnterpriseDB data using native Tableau data types and handling complex filters, aggregations, & other operations automatically, CData Tableau Connectors grant seamless access to EnterpriseDB data.

NOTE: The CData Tableau Connectors support Tableau Prep Builder 2020.4.1 or higher. If you are using an older version of Tableau Prep Builder, you will need to use the CData Tableau Connector for EnterpriseDB. If you wish to connect to EnterpriseDB data in Tableau Cloud, you will need to use CData Connect.

Install the CData Tableau Connector

When you install the CData Tableau Connector for EnterpriseDB, the installer should copy the TACO and JAR files to the appropriate directories. If your data source does not appear in the connection steps below, you will need to copy two files:

1. Copy the TACO file (cdata.enterprisedb.taco) found in the lib folder of the connector's installation location (C:\Program Files\CData\CData Tableau Connector for EnterpriseDB 20XX\lib on Windows) to the Tableau Prep Builder repository:
   • Windows: C:\Users\[Windows User]\Documents\My Tableau Prep Repository\Connectors
   • MacOS: /Users//Documents/My Tableau Prep Repository/Connectors
2. Copy the JAR file (cdata.tableau.enterprisedb.jar) found in the same lib folder to the Tableau drivers directory, typically [Tableau installation location]\Drivers.

Connect to EnterpriseDB in Tableau Prep Builder

Open Tableau Prep Builder and click "Connect to Data" and search for "EnterpriseDB by CData." Configure the connection and click "Sign In."

The following connection properties are required in order to connect to data.

• Server: The host name or IP of the server hosting the EnterpriseDB database.
• Port: The port of the server hosting the EnterpriseDB database.

You can also optionally set the following:

• Database: The default database to connect to when connecting to the EnterpriseDB Server. If this is not set, the user's default database will be used.

Connect Using Standard Authentication

To authenticate using standard authentication, set the following:

• User: The user which will be used to authenticate with the EnterpriseDB server.
• Password: The password which will be used to authenticate with the EnterpriseDB server.

Connect Using SSL Authentication

You can leverage SSL authentication to connect to EnterpriseDB data via a secure session. Configure the following connection properties to connect to data:

• SSLClientCert: Set this to the name of the certificate store for the client certificate. Used in the case of 2-way SSL, where truststore and keystore are kept on both the client and server machines.
• SSLClientCertPassword: If a client certificate store is password-protected, set this value to the store's password.
• SSLClientCertSubject: The subject of the TLS/SSL client certificate. Used to locate the certificate in the store.
• SSLClientCertType: The certificate type of the client store.
• SSLServerCert: The certificate to be accepted from the server.

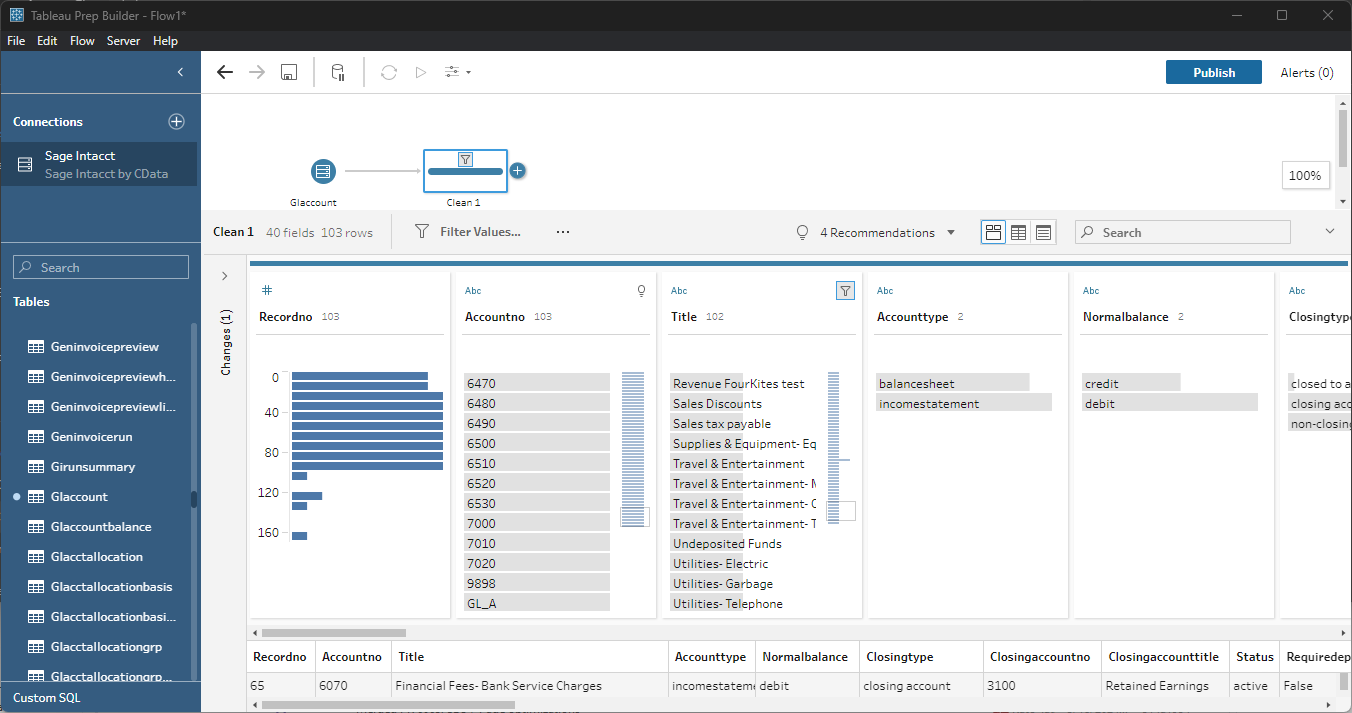

Discover and Prep Data

Drag the tables and views you wish to work with onto the canvas. You can include multiple tables.

Data Cleansing & Filtering

To further prepare the data, you can implement filters, remove duplicates, modify columns and more.

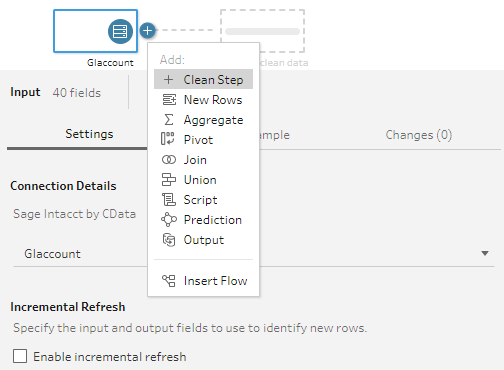

1. Start by clicking on the plus next to your table and selecting the Clean Step option.

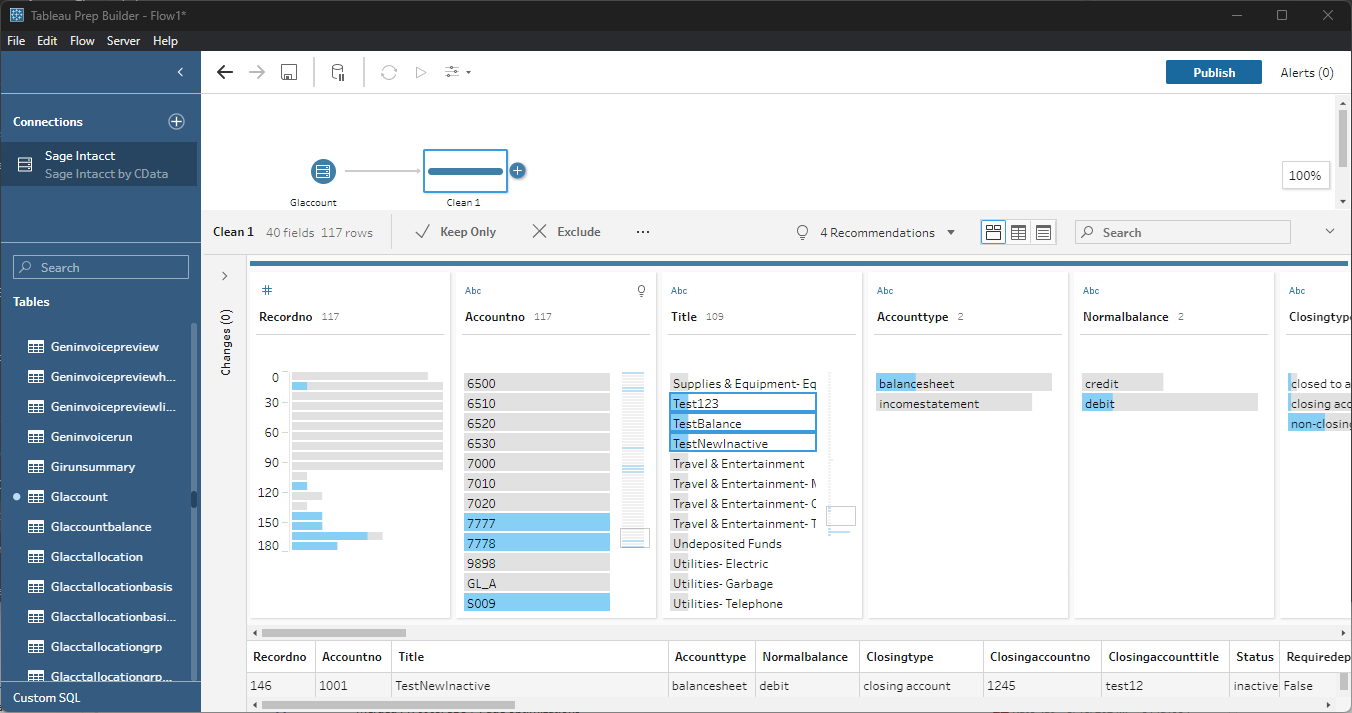

2. Select the field values to filter by. As you select values, you can see how your selections impact other fields.
3. Opt to "Keep Only" or "Exclude" entries with your select values and the data changes in response.

Data Joins and Unions

Data joining involves combining data from two or more related tables based on a common field or key.

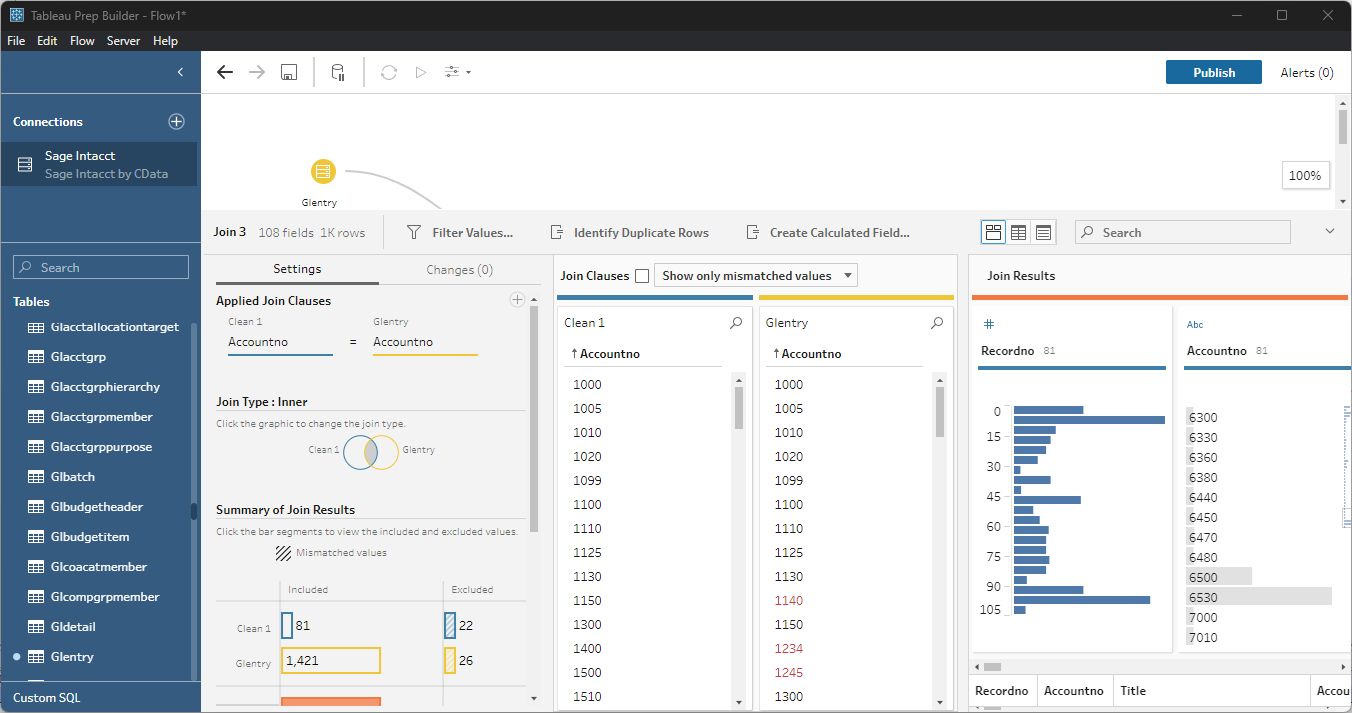

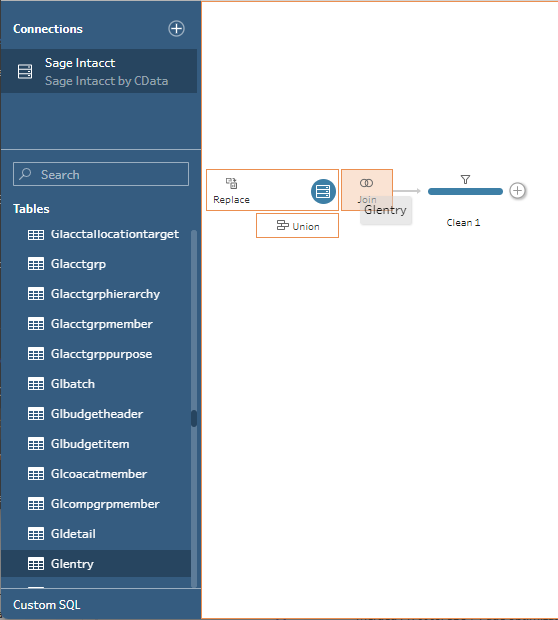

1. To join multiple tables, drag a related table next to an existing table in the canvas and place it in the Join box.
2. Select the foreign keys that exist in both tables.

Exporting Prepped Data

After you perform any cleansing, filtering, transformations, and joins, you can export the data for visualization in Tableau.

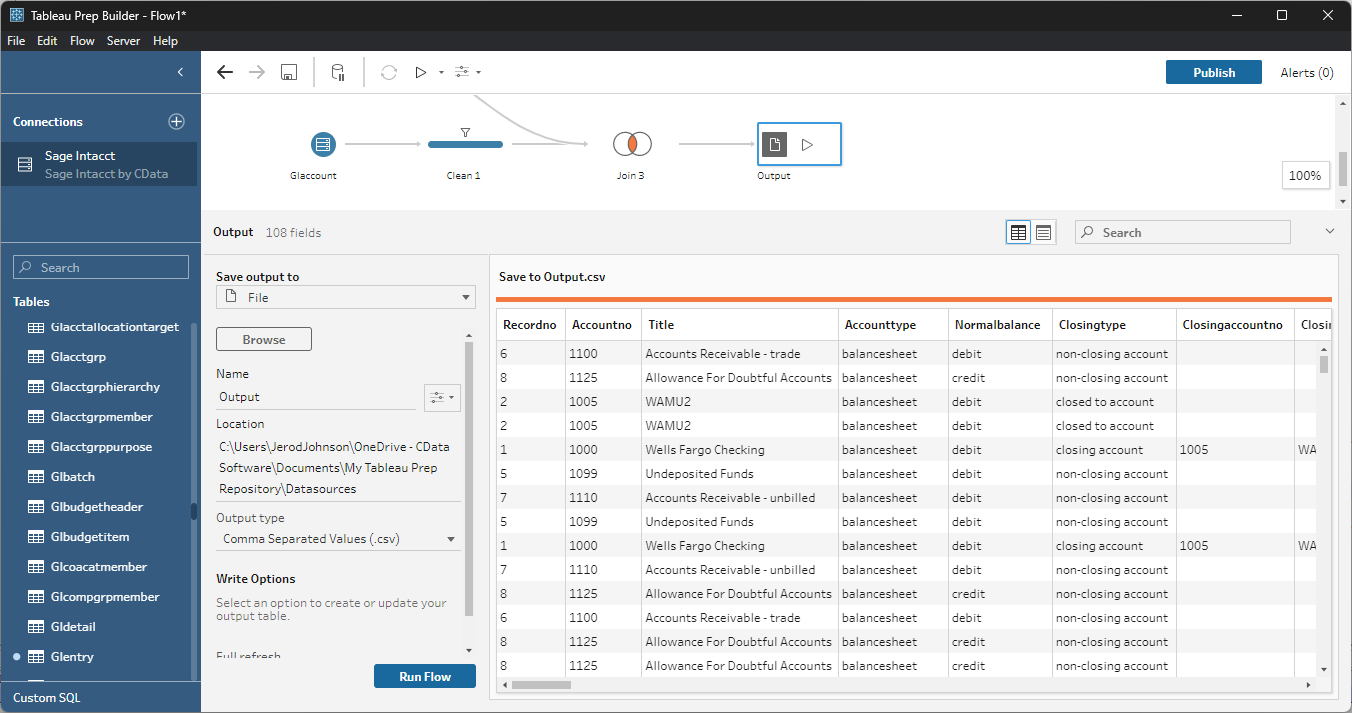

1. Add any other needed transformations then insert an Output node at the end of the flow.
2. Configure the node to save to a file in the format of your choice.

Once the output data is saved, you can work with it in Tableau, just like you would any other file source.

Using the CData Tableau Connector for EnterpriseDB with Tableau Prep Builder, you can easily join, cleanse, filter, and aggregate EnterpriseDB data for visualizations and reports in Tableau. Download a free, 30-day trial and get started today.
