Build Visualizations of Oracle Eloqua Data in Birst

Birst is a cloud business intelligence (BI) tool and analytics platform that helps organizations quickly understand and optimize complex processes. When paired with the CData JDBC Driver for Eloqua, you can connect to live Oracle Eloqua data through the Birst Cloud Agent and build real-time visualizations. In this article, we walk you through, step-by-step, how to connect to Oracle Eloqua using the Cloud Agent and create dynamic reports in Birst.

With powerful data processing capabilities, the CData JDBC driver offers unmatched performance for live Oracle Eloqua data operations in Birst. When you issue complex SQL queries from Birst to Oracle Eloqua, the driver pushes supported SQL operations, like filters and aggregations, directly to Oracle Eloqua and utilizes the embedded SQL Engine to process unsupported operations client-side (often SQL functions and JOIN operations). With built-in dynamic metadata querying, the JDBC driver enables you to visualize and analyze Oracle Eloqua data using native Birst data types.

Configure a JDBC Connection to Oracle Eloqua Data in Birst

Before creating the Birst project, you will need to install the Birst Cloud Agent (in order to work with the installed JDBC Driver). Also, copy the JAR file for the JDBC Driver (and the LIC file, if it exists) to the /drivers/ directory in the installation location for the Cloud Agent.

With the driver and Cloud Agent installed, you are ready to begin.

1. Create a new project in Birst.
2. Name the connection (e.g. CDataOracleEloqua).
3. Choose Live Access.
4. Select an agent.
5. Set Database Type to Other.
6. Set SQL Type to MSSQL
7. Set the Connection string.

   There are two authentication methods available for connecting to Oracle Eloqua: Login and OAuth. The Login method requires you to have the Company, User, and Password of the user.

   If you do not have access to the username and password or do not wish to require them, you can use OAuth authentication. OAuth is better suited for allowing other users to access their own data. Using login credentials is better suited for accessing your own data.

   Built-in Connection String Designer

   For assistance in constructing the JDBC URL, use the connection string designer built into the Oracle Eloqua JDBC Driver. Either double-click the JAR file or execute the jar file from the command-line.

   java -jar cdata.jdbc.oracleeloqua.jar

   Fill in the connection properties and copy the connection string to the clipboard.

   When you configure the JDBC URL, you may also want to set the Max Rows connection property. This will limit the number of rows returned, which is especially helpful for improving performance when designing reports and visualizations.

   Below is a typical JDBC connection string for Oracle Eloqua:

   jdbc:oracleeloqua:User=user;Password=password;Company=CData;
8. Set the Driver Name: cdata.jdbc.oracleeloqua.OracleEloquaDriver and click Save.

NOTE: Since authentication to Oracle Eloqua is managed from the connection string, you can leave Security Credentials blank.

Configure Oracle Eloqua Data Objects

Now that the connection is configured, we are ready to configure the schema for the dataset, choosing the tables, views, and columns we wish to visualize.

1. Select the Schema (e.g. OracleEloqua).
2. Click on Tables and/or Views to connect to those entities and click Apply.
3. Select the Tables and Columns you want to access and click Done.

With the objects configured, you can perform any data preparation and discover any relationships in your data using the Pronto Prepare and Relate tools.

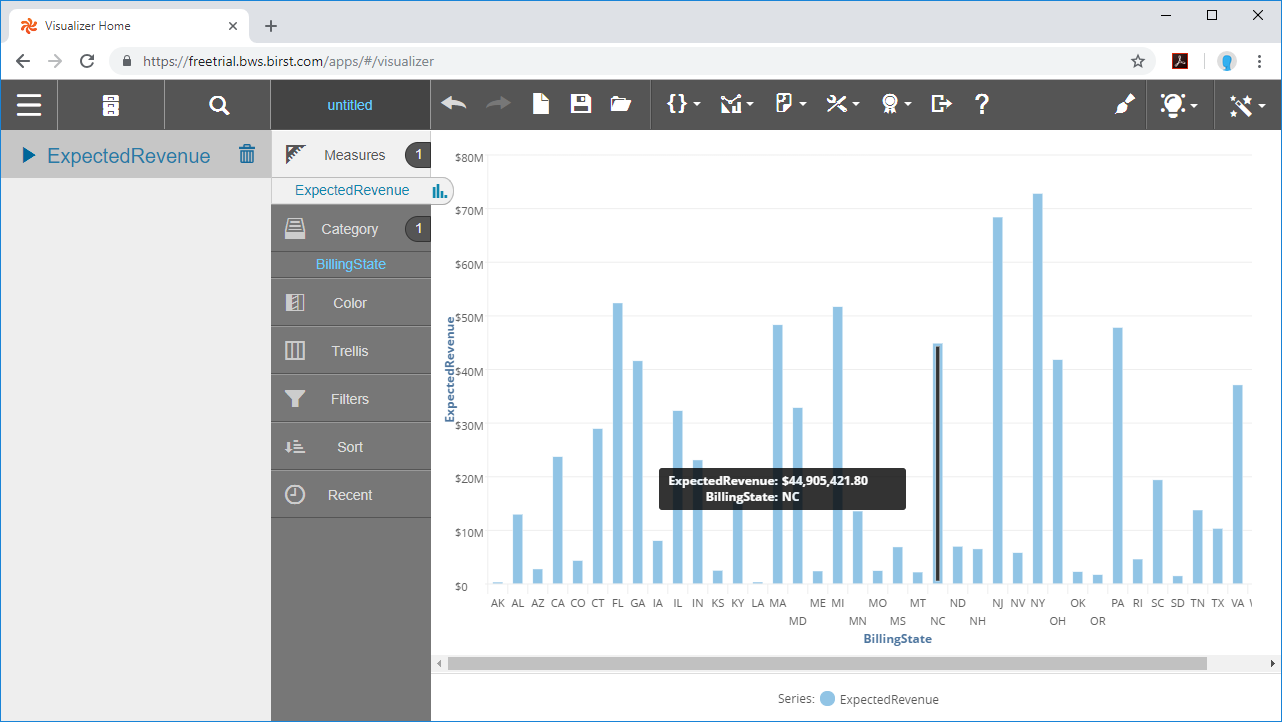

Build a Visualization

After you prepare your data and define relationships between the connected objects, you are ready to build your visualization.

1. Select the Visualizer tool from the menu.
2. Select Measures & Categories from your objects
3. Select and configure the appropriate visualization for the Measure(s) you selected.

Using the CData JDBC Driver for Eloqua with the Cloud Agent and Birst, you can easily create robust visualizations and reports on Oracle Eloqua data. Download a free, 30-day trial and start building Birst visualizations today.
