Query TigerGraph Data in DataGrip

DataGrip is a database IDE that allows SQL developers to query, create, and manage databases. When paired with the CData JDBC Driver for TigerGraph, DataGrip can work with live TigerGraph data. This article shows how to establish a connection to TigerGraph data in DataGrip.

Create a New Driver Definition for TigerGraph

The steps below describe how to create a new Data Source in DataGrip for TigerGraph.

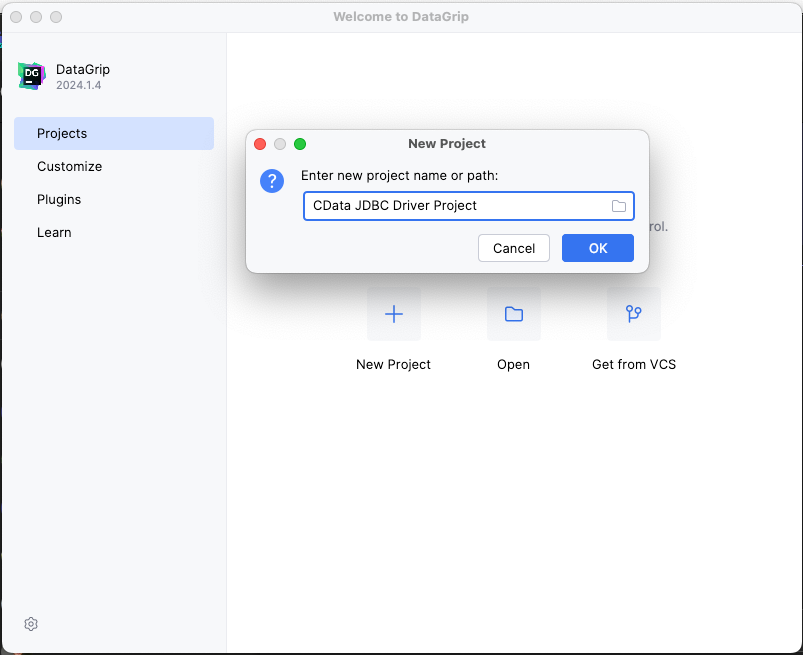

1. In DataGrip, click File -> New > Project and name the project

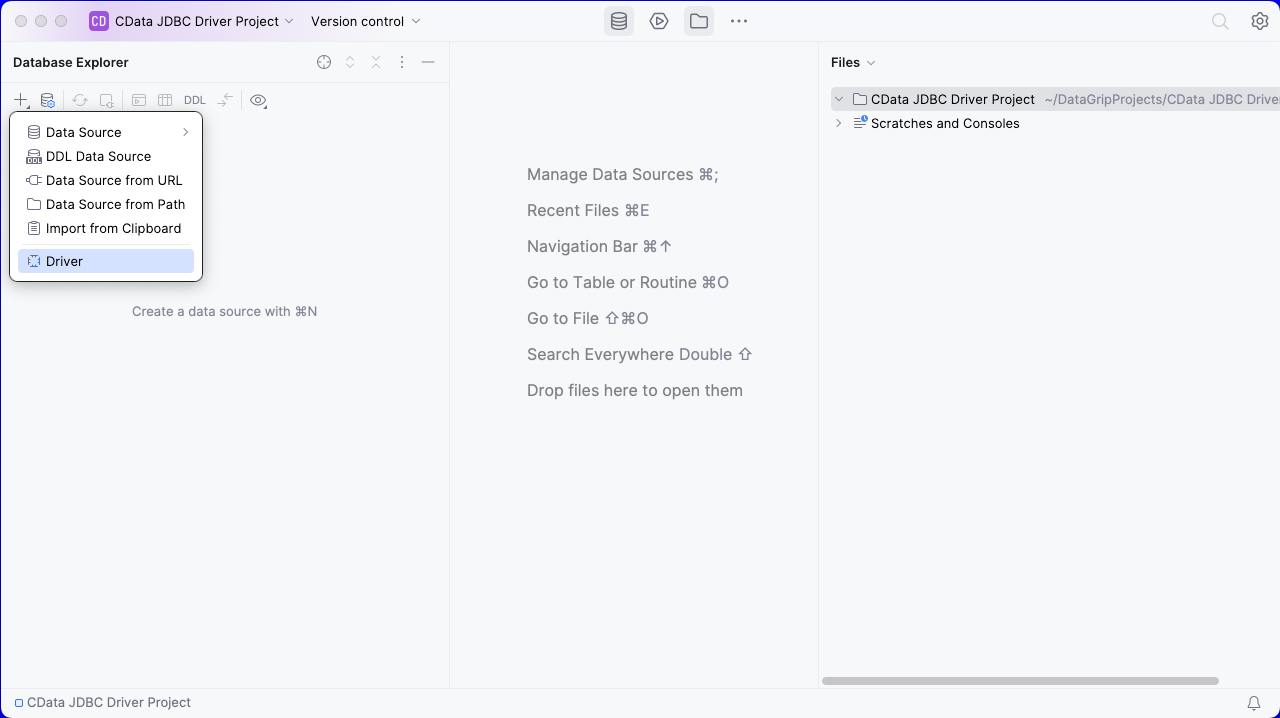

2. In the Database Explorer, click the plus icon () and select Driver.

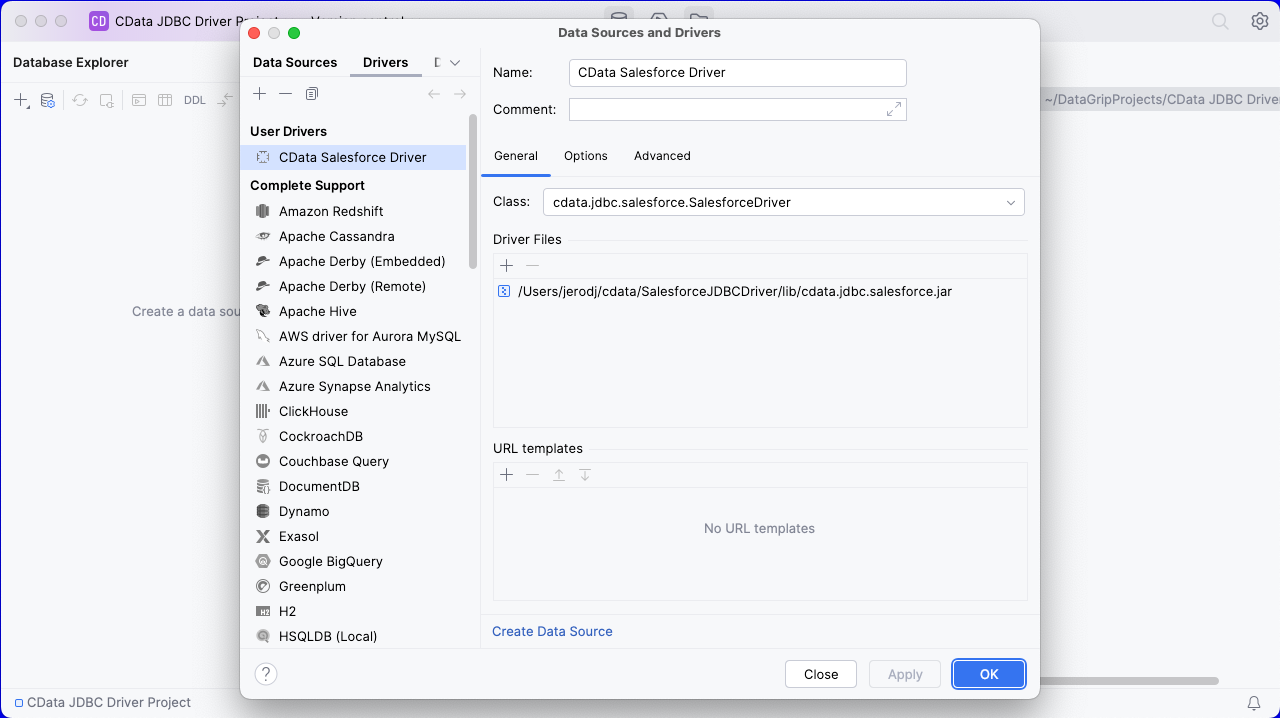

3. In the Driver tab:
   • Set Name to a user-friendly name (e.g. "CData TigerGraph Driver")
   • Set Driver Files to the appropriate JAR file. To add the file, click the plus (), select "Add Files," navigate to the "lib" folder in the driver's installation directory and select the JAR file (e.g. cdata.jdbc.tigergraph.jar).
   • Set Class to cdata.jdbc.tigergraph.TigerGraph.jar
   Additionally, in the advanced tab you can change driver properties and some other settings like VM Options, VM environment, VM home path, DBMS, etc
   • For most cases, change the DBMS type to "Unknown" in Expert options to avoid native SQL Server queries (Transact-SQL), which might result in an invalid function error
4. Click "Apply" then "OK" to save the Connection

Configure a Connection to TigerGraph

1. Once the connection is saved, click the plus (), then "Data Source" then "CData TigerGraph Driver" to create a new TigerGraph Data Source.

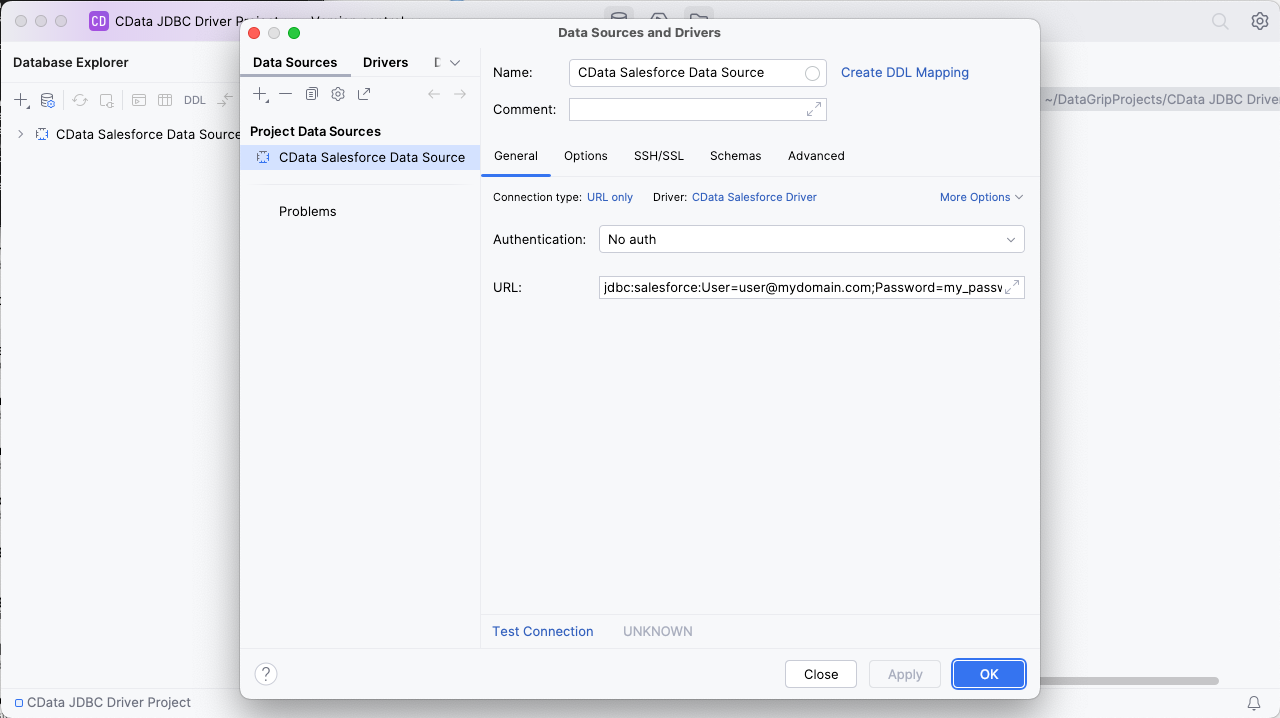

2. In the new window, configure the connection to TigerGraph with a JDBC URL.

   Built-in Connection String Designer

   For assistance in constructing the JDBC URL, use the connection string designer built into the TigerGraph JDBC Driver. Either double-click the JAR file or execute the jar file from the command-line.

   java -jar cdata.jdbc.tigergraph.jar

   Fill in the connection properties and copy the connection string to the clipboard.

   To authenticate with your TigerGraph instance, set the User, Password, and URL properties to valid TigerGraph credentials. By default connections are made on port 14240.

3. Set URL to the connection string, e.g., jdbc:tigergraph:User=MyUserName;Password=MyPassword;URL=MyURL;
4. Click "Apply" and "OK" to save the connection string

At this point, you will see the data source in the Data Explorer.

Execute SQL Queries Against TigerGraph

To browse through the TigerGraph entities (available as tables) accessible through the JDBC Driver, expand the Data Source.

To execute queries, right click on any table and select "New" -> "Query Console."

In the Console, write the SQL query you wish to execute. For example: SELECT id, locationId FROM person WHERE locationId = 'chn'

Download a free, 30-day trial of the CData JDBC Driver for TigerGraph and start working with your live TigerGraph data in DataGrip. Reach out to our Support Team if you have any questions.
